10端口 698–2690MHz双频基站扇区天线
10端口多频段基站天线是专为多运营商和多制式通信站点设计的先进扇区解决方案。该天线完整覆盖 698–960MHz 和 1710–2690MHz 频段，集成了现场可更换的 RCU 模块。凭借高增益、卓越的 PIM 性能（≤-153dBc）以及紧凑的 4.3-10 接口设计，该天线在最大化站点容量的同时，有效降低了风载荷并节省了塔顶空间。
- 频率范围：2x (698-960MHz) & 3x (1710-2690MHz) 双极化阵列

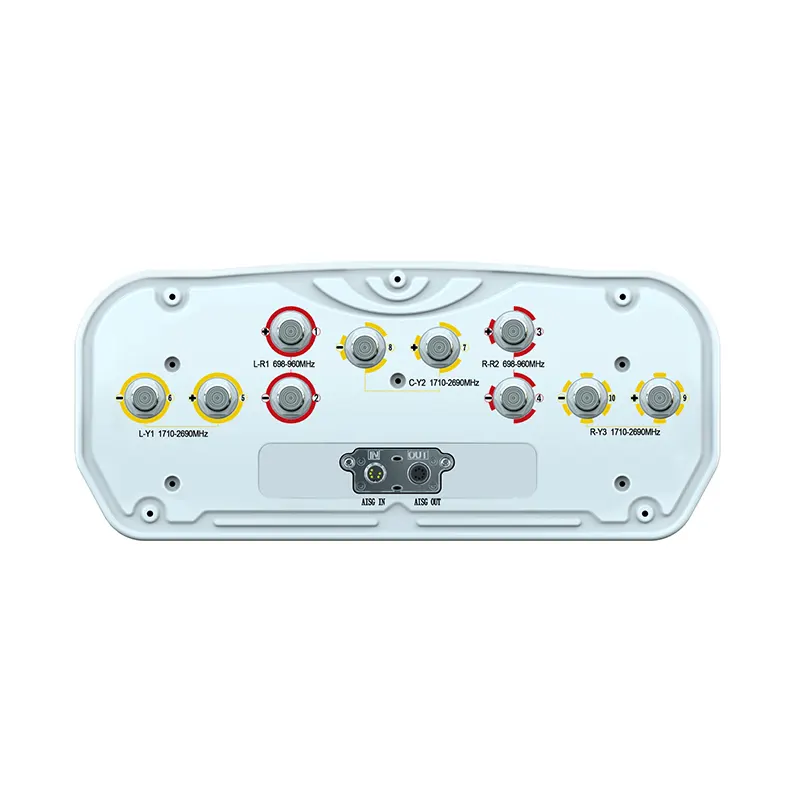

- 端口配置：10 × 4.3-10 Female (底部位置)
- 峰值增益：16.0 dBi (低频段) / 17.7 dBi (高频段)
- 三阶互调 (IM3)：≤ -153 dBc (2 × 43dBm 载波)
描述
此款 10 端口天线是针对复杂的 4G LTE 与 5G NR 混合部署环境而优化的。天线内部整合了 2 个低频阵列（R1/R2）和 3 个高频阵列（Y1-Y3），通过单面天线即可实现多频段覆盖，极大地简化了天线馈线系统的复杂性。所有接口均采用底部出线方式，配合紧凑的 4.3-10 Female 连接器，提供了更高的连接密度和更稳定的电气接触。
在智能化运维方面，该天线内置了符合 AISG 2.0/3GPP 协议的远程电调（RET）系统。最突出的特点是其 RCU（远程控制单元）采用了现场可更换设计，即使在极端天气下电调单元受损，维护人员也无需拆卸整面天线即可进行模块化更换。天线外壳由耐腐蚀、抗 UV 的灰色玻璃钢制成，可在 -50°C 至 +65°C 的温度范围内稳定工作，确保了在恶劣环境下的超长使用寿命。
技术与机械规格说明
| 电气规格 | ||||
|---|---|---|---|---|
| 频率范围 (MHz) | R1/R2 -698~960 | |||
| 698~803 | 790~862 | 824~894 | 880~960 | |
| 极化方式 | ±45° | |||
| 中倾增益 (dBi) | 14.8 | 15.4 | 15.7 | 16.0 |
| 全倾角增益 (dBi) | 14.6±0.4 | 15.2±0.4 | 15.5±0.4 | 15.9±0.4 |
| 水平3dB波束宽度 (°) | 68±5 | 65±4 | 64±4 | 64±3 |
| 垂直3dB波束宽度 (°) | 11.7±0.6 | 10.7±0.4 | 10.3±0.5 | 9.5±0.5 |
| 前后比 (dB) | >22 | >24 | >24 | >25 |
| 交叉极化比 (dB) | >18 | >18 | >18 | >18 |
| 电气下倾角 (°) | 2~12 | |||
| 旁瓣抑制 (dB) | >15 | >17 | >17 | >16 |
| VSWR | <1.5 | |||
| 交叉极化隔离 (dB) | ≥25 | |||
| 频段间隔离 (dB) | ≥25（R1//R2） ≥28（Other） | |||
| 三阶互调 (IM3) | ≤-153 dBc | |||
| 阻抗 (Ω) | 50 | |||
| 效率 | ≥70% | |||
| 最大输入功率 (W) | 400 | |||
| 防雷保护 | Dc Ground | |||
| 电气规格 | ||||||||
|---|---|---|---|---|---|---|---|---|
| 频率范围 (MHz) | Y1/Y3-1710~2690 | Y2-1710~2690 | ||||||
| 1710~1990 | 1920~2200 | 2200~2490 | 2490~2690 | 1710~1990 | 1920~2200 | 2200~2490 | 2490~2690 | |
| 极化方式 | ±45° | |||||||
| 中倾增益 (dBi) | 17.1 | 17.3 | 17.4 | 17.5 | 17.2 | 17.4 | 17.5 | 17.7 |
| 全倾角增益 (dBi) | 17.0±0.5 | 17.1±0.5 | 17.2±0.5 | 17.4±0.5 | 17.1±0.5 | 17.3±0.5 | 17.4±0.5 | 17.6±0.5 |
| 水平3dB波束宽度 (°) | 67±2.2 | 64±1.5 | 60±1.2 | 59±1.4 | 63±2.2 | 59±1.5 | 63±1.2 | 62±1.4 |
| 垂直3dB波束宽度 (°) | 6.9±0.3 | 6.1±0.5 | 5.5±0.3 | 4.9±0.3 | 7.0±0.3 | 6.4±0.5 | 5.6±0.3 | 5.0±0.3 |
| 前后比 (dB) | >25 | >25 | >25 | >25 | >28 | >28 | >28 | >28 |
| 交叉极化比 (dB) | >20 | >18 | >17 | >16 | >19 | >18 | >17 | >17 |
| 电气下倾角 (°) | 2~12 | 2~12 | ||||||
| 旁瓣抑制 (dB) | >16 | >16 | >16 | >16 | >16 | >16 | >16 | >16 |
| VSWR | <1.5 | <1.5 | ||||||
| 交叉极化隔离 (dB) | ≥25 | ≥25 | ||||||
| 频段间隔离 (dB) | ≥28 | ≥28 | ||||||
| 三阶互调 (IM3) | ≤-153 dBc | |||||||
| 阻抗 (Ω) | 50 | |||||||
| 最大输入功率 (W) | 200 | |||||||
| 效率 | ≥70% | |||||||
| 机械规格 | |
|---|---|
| 连接器 | 10×4.3-10 Female |
| 连接器位置 | Bottom |
| 尺寸（高×宽×深 mm） | 2080×469×198 |
| 包装尺寸（mm） | 2460×585×350 |
| 天线重量（kg） | 35.5 |
| 安装套件重量（kg） | 5.4 |
| 包装重量（kg） | 48.5 |
| 风载荷（N，150km/h）前/侧/后 | 903/273/924 |
| 最大风速（km/h） | 216 |
| 防护罩材料 | Fiberglass, UV Resistant |
| 防护罩颜色 | Gray or customized |
| 机械下倾角（°） | 0-10 |
| 工作温度（℃） | -50~65 |
| 安装支架尺寸（mm） | Φ50~Φ115 |
| 集成RET特性 | |
|---|---|
| RET类型 | Integrated (Replaceable) |
| RET协议 | AISG 2.0/3GPP |
| 供电电压（V） | 10-30 DC |
| 功耗（W） | ≤0.6 (Idle,12V),≤6 (in Motion,12V) |
| 调整时间（全范围） | ＜4Mins |
| 调整循环次数 | ＞50,000 |
| 工作温度（℃） | -40~65 |
| 防雷保护 | 3KA(8/20μs) @ Pin5 & Pin3; 5KA(8/20μs) @ Pin1 / Pin6 & Pin7 |
| 连接器 | 2×8 Pin circle connector according to IEC 60130-9 and AISG. Daisy chain in:Male, Daisy chain out:Female Pin1:12V; Pin3:RS485B; Pin5:RS485A; Pin6:10-30V; Pin7:GND; Pin2&Pin4&Pin8:N/C |
应用场景
- 多运营商共站共享： 单面天线支持多路独立信号输入。
- 高容量城市扇区： 17.7 dBi 高增益配合精准的下倾角调节，提升覆盖质量。
- 塔顶空间受限环境： 10 端口集成设计，减少天线挂载数量。
- 4G 向 5G 平滑演进： 覆盖主流 Sub-3GHz 全频段，支持多种网络制式并行。
产品常见问答
- 这款天线的 PIM 性能如何？
- 天线的三阶互调（IM3）指标达到了 ≤-153 dBc (@2x43dBm)，能够有效降低底噪，提升基站的数据吞吐量。
- RET 电调系统支持哪些协议？
- 完全符合 AISG 2.0 和 3GPP 标准协议，可无缝对接主流设备厂商的基站控制器。
- RCU 模块更换是否方便？
- 是的。该天线采用集成但可现场更换的设计，维护时只需操作电调单元模块，无需打乱天线的物理安装位置。
- 天线的雷电防护措施有哪些？
- 天线内部所有金属部件均采用 DC Ground（直流接地）保护，且 RET 控制电路具备 3KA/5KA（8/20μs）的浪涌防护等级。
Main Product Introduction
This 10-port multiband antenna is a cornerstone for modern macro-cell infrastructure, allowing carriers to support multiple frequency bands (700/800/900/1800/2100/2600MHz) within a single antenna footprint. The antenna is divided into distinct frequency clusters: two low-band arrays (R1/R2) and three high-band arrays (Y1/Y2/Y3), each supporting ±45° polarization for optimal diversity and MIMO performance. A standout feature is the integrated, field-replaceable Remote Electrical Tilt (RET) system. This allows network engineers to adjust the electrical downtilt (2° to 12°) remotely via the AISG 2.0 protocol, significantly reducing the need for tower climbs and optimizing network coverage in real-time. The use of 4.3-10 connectors provides a 40% reduction in connector space and substantial weight savings while maintaining the highest levels of PIM stability. Built to withstand extreme conditions, the antenna is rated for wind velocities up to 216 km/h and features a rugged, UV-resistant fiberglass radome, ensuring a long service life in the most demanding outdoor environments.
Application Scenarios
- 4G/5G Macro Cell Sites: Consolidating multiple frequency bands to reduce tower loading and lease costs.
- Urban Capacity Densification: High-gain 65° sector coverage for high-traffic metropolitan areas.
- Co-location Sites: Ideal for sites shared by multiple operators requiring independent tilt control via AISG.
- Rural Coverage Extension: Leveraging high-gain low-band arrays to extend the reach of LTE and 5G NR services.
- Urban Capacity Densification: High-gain 65° sector coverage for high-traffic metropolitan areas.
Product Q&A
- Q: What is the benefit of the 4.3-10 connector over the traditional 7/16 DIN?
- A: The 4.3-10 connector offers superior PIM performance and is significantly more compact and lightweight. It also separates the electrical contact from the mechanical coupling, ensuring more stable RF performance even when torque varies.
- Q: Can the RET (Remote Electrical Tilt) unit be replaced in the field?
- A: Yes. The RCU (Remote Control Unit) is designed to be field-replaceable. This means if a tilt motor fails, it can be swapped without needing to replace the entire antenna, greatly reducing maintenance costs.
- Q: What does “AISG 2.0/3GPP Protocol” mean for compatibility?
- A: This ensures that the antenna’s electrical tilt can be controlled by any standard Base Station (BTS) or specialized controller that follows these industry-wide protocols, regardless of the manufacturer.
- Q: How does the antenna handle extreme weather?
- A: The antenna is built with a UV-resistant fiberglass radome and is rated to operate in temperatures as low as -50°C. It also features DC grounding for lightning protection and is tested for high wind loads (up to 924N at 150km/h).
